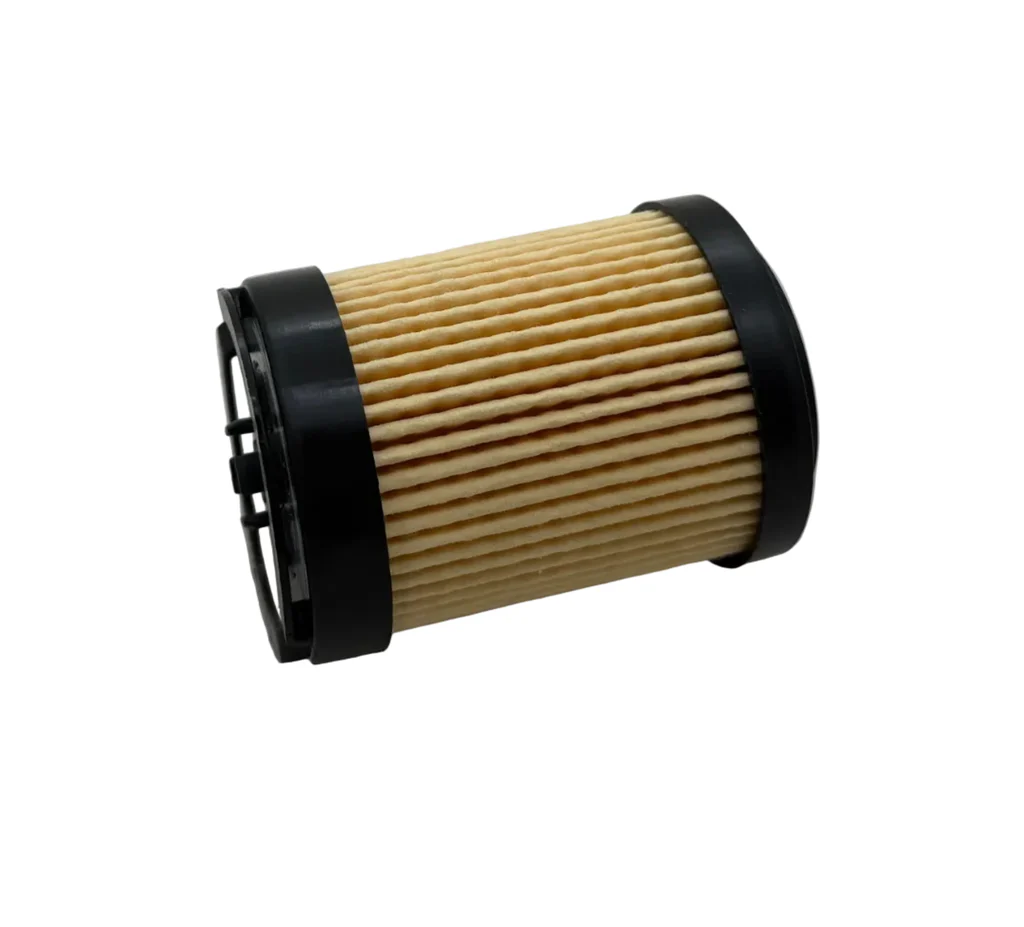

320991910 Auto Crane Hydraulic Return Filter Element - 10 Micron - NexStar EH Series - 3203EH 4004EH

320991910 Auto Crane Hydraulic Return Filter Element — NexStar EH Series

Protect your NexStar proportional valves. This is the return line hydraulic filter element for Auto Crane EH-Series cranes — the filtration barrier between your crane's hydraulic fluid and the $4,000+ proportional valve bank. When this $69 filter clogs or bypasses, contaminated fluid flows directly through your precision valves, scoring the spools and destroying the valve bodies. Auto Crane part number 320991910. In stock, ships same day.

Why This Filter Matters

NexStar EH-Series cranes use proportional solenoid valves — precision hydraulic components with tight internal tolerances. These valves provide the smooth, variable-speed control that makes the NexStar system superior to conventional on/off crane controls. The trade-off: proportional valves are extremely sensitive to contamination.

Every particle of dirt, metal, or debris in the hydraulic fluid is an abrasive working against the valve spools, orifices, and seats. The return line filter catches this contamination before it recirculates through the system. When the filter element clogs:

• The bypass valve opens, allowing unfiltered oil to flow freely through the system
• Every contaminant in the tank is now circulating through your proportional valves
• Within weeks, the valve spools score, the orifices plug, and crane functions become erratic
• A new proportional valve bank is $4,000+. A new filter element is $69.

The Problem

Hydraulic filters are invisible maintenance. Nobody thinks about them until something goes wrong. The filter element sits inside the reservoir housing — out of sight, out of mind. Many crane operators run the same filter for years because "the crane works fine." By the time the crane starts acting up — sluggish movements, erratic proportional control, jerky boom operation — the damage to the proportional valves has already been done.

Then the owner calls the Auto Crane dealer for a filter element. The dealer wants $99–$105 for a filter that should cost a fraction of that. And they'll happily sell you a new proportional valve bank for $4,000+ when the old valves are destroyed by contamination because the filter wasn't changed.

The Solution

Same specification 10-micron return line filter element at $69 — 30%+ less than the dealer. Change it every 500 hours or annually (whichever comes first), and your proportional valves will last the life of the crane. Skip it, and you're buying valve banks.

Specifications

• Auto Crane OEM Part Number: 320991910
• Type: Return Line Filter Element
• Filtration Rating: 10 Micron
• Media Type: Cellulose (Paper) — standard duty
• Seal Material: Buna-N (Nitrile) — compatible with petroleum-based hydraulic fluids
• Application: Return Line (Low Pressure)
• Dimensions: Approximately 3.5" tall × 2.5" diameter
• Length Type: Single Length (Standard)
• Cap: Plastic or Metal end cap
• Condition: Brand New

Compatible Equipment

This filter element fits the following Auto Crane models with proportional hydraulic (EH) systems:

• Auto Crane 3203EH
• Auto Crane 4004EH
• Auto Crane HC-Series (small reservoir configurations — verify PN 320991910)

⚠️ This is specifically for the EH (Electro-Hydraulic / NexStar) series with proportional valve control. If your crane is a non-EH model (standard on/off valve system), verify the filter part number in your service manual — the reservoir and filter configuration may differ.

Change Interval

• Manufacturer recommendation: Every 500 operating hours or annually — whichever comes first
• Severe service (dusty environments, high heat, constant use): Every 250–300 hours
• After any hydraulic repair: Always replace the return filter after repairing or replacing any hydraulic component — hose failures, cylinder rebuilds, pump replacements, and valve swaps all introduce contamination
• After fluid change: Always install a new filter element when changing the hydraulic fluid
• After a hose blow: If a hydraulic hose burst and introduced debris or external contamination into the system, change the filter immediately and monitor the new element — may need a second change after 50 hours to capture residual contamination

Signs Your Filter Needs Changing

• Sluggish crane functions: Boom extends/retracts slowly or weakly — restricted flow from a clogged filter
• Erratic proportional control: Crane movements are jerky instead of smooth — contaminated oil is interfering with the proportional valve spools
• Hydraulic fluid is dark or discolored: Pull the dipstick or drain a sample — clean hydraulic fluid is clear amber. Dark, cloudy, or milky fluid indicates contamination and a filter that has exceeded its capacity
• Elevated operating temperature: A clogged filter restricts flow, causing the pump to work harder and generating excess heat
• Buzzing or whining noise from the valve bank: Contaminated oil passing through proportional valves causes cavitation and noise
• Filter bypass indicator (if equipped): Some reservoir housings have a bypass indicator — if it's triggered, the filter is clogged and oil is flowing around the element unfiltered

Why 10 Micron? Why Cellulose?

10 micron is the standard filtration rating for return line hydraulic filters in crane applications. It captures particles larger than 10 microns — which includes the silt, metal wear particles, and seal debris that damage proportional valve components. Finer filtration (5 or 3 micron) would plug too quickly in a return line application. Coarser filtration (25 micron) would allow damaging particles to pass through.

Cellulose (paper) media is the factory-standard filter media for this application. It provides excellent particle capture at a reasonable cost and is appropriate for standard change intervals (500 hours). Synthetic media elements are available for extended-life applications but are not required for standard service.

Why Buy From Trenchwell?

• Save 30%+ vs Dealer: Auto Crane dealers charge $99–$105 for this filter element. Ours is $69 — same spec, same filtration rating, same fit.
• Protect a $4,000 Valve Bank: The proportional valve bank on your NexStar crane is the most expensive hydraulic component on the truck. A $69 filter change every 500 hours is cheap insurance. Skipping filter changes is how you end up buying a new valve bank.
• Consumable — Buy in Bulk: If you run a fleet of Auto Cranes, stock 6–12 elements and change them on a schedule. We offer fast shipping on repeat orders. Contact us for fleet pricing on multi-packs.
• In Stock, Ships Same Day: Don't wait for the dealer to order one. We have them on the shelf.

Installation

1. Shut down the crane and truck engine
2. Release hydraulic pressure — cycle the crane controls with the engine off
3. Locate the return filter housing on the hydraulic reservoir
4. Clean the area around the filter housing cap — do not let dirt fall into the reservoir
5. Remove the filter housing cap or cover
6. Lift out the old filter element — note the orientation
7. Inspect the old element:
   • If it's dark brown or black → severely overdue for replacement
   • If there are metal particles visible → investigate the source of metal contamination (pump, cylinder, motor wear)
   • If the element is collapsed or torn → the filter was bypassing
8. Wipe the inside of the filter housing with a clean lint-free cloth
9. Insert the new element in the same orientation as the old one
10. Replace the housing cap or cover — ensure the seal seats properly
11. Check the hydraulic fluid level — top off if needed with the correct fluid type
12. Start the engine and operate the crane through all functions
13. Check for leaks around the filter housing cap
14. Record the date and hour meter reading for the next change interval

Frequently Asked Questions

How do I know when the filter needs changing if there's no indicator?
Track it by hours or calendar time. Put a sticker on the reservoir with the date and hour meter reading each time you change it. If you don't track hours, change it annually at minimum. For active cranes (daily use), 500 hours comes up 2–3 times per year. If in doubt, change it — a $69 filter is the cheapest insurance on the truck.

Can I clean and reuse the old filter element?
No. Cellulose (paper) media filter elements are not washable or reusable. Attempting to clean them with compressed air or solvents damages the media fibers and opens up channels that allow contamination to pass through. Once the element has captured its rated capacity of particles, it must be replaced with a new element.

What happens if I never change the filter?
The element clogs progressively. Flow restriction increases, causing slower crane functions and elevated fluid temperature. Eventually, the pressure differential across the element exceeds the bypass valve spring force, and the bypass opens — allowing unfiltered oil to circulate freely through the entire hydraulic system. At this point, every contaminant in the reservoir is flowing through your proportional valves, pump, and cylinders. Valve damage follows within weeks to months.

Should I change the hydraulic fluid at the same time?
It depends on fluid condition. Pull a sample — if it's clear amber, the fluid is fine. If it's dark, cloudy, or smells burnt, change the fluid along with the filter. As a rule, hydraulic fluid should be changed every 2,000–3,000 hours or when oil analysis indicates degradation. Always install a fresh filter element after a fluid change.
